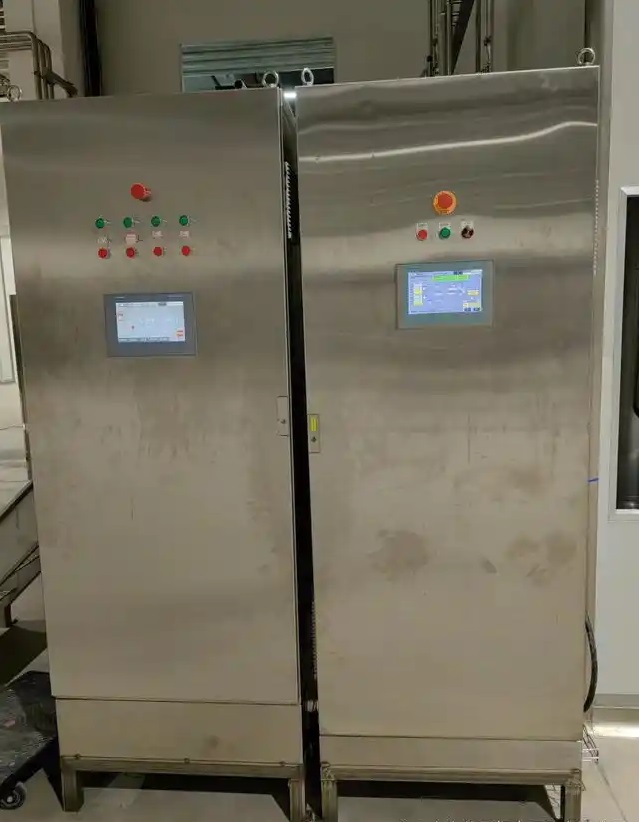

The water pump control cabinet is an important part of the water pump system, and the selection of its components is directly related to the stability, safety and reliability of the system. When selecting components for a water pump control cabinet, multiple factors need to be considered, including electrical performance, environmental conditions, system requirements, and cost control. The following is a detailed analysis of the selection of components for the pump control cabinet:
- Frequency converter
As the core power output component of water pump control, the frequency converter is indispensable. It not only enables smooth speed regulation of the water pump motor, but also significantly improves the energy efficiency of the system. When selecting a frequency converter, you need to pay attention to its rated power, frequency range, control method, and protection function. The frequency converter should be able to adapt to the load characteristics of the water pump system and have good protection functions such as overload, overvoltage and undervoltage. At the same time, the brand and quality of the inverter are also crucial. Choosing products from well-known brands and reliable quality will help ensure the stable operation of the system.
- PLC (Programmable Controller)
As the control core of the water pump control cabinet, PLC is responsible for receiving and processing signals from sensors and issuing control instructions according to preset logic. When choosing a PLC, you need to pay attention to its processing power, number of input and output points, communication functions, and ease of use of the programming software. The PLC should be able to meet the control requirements of the water pump system and have sufficient input and output points to connect various sensors and actuators. At the same time, the communication function of PLC is also very important. It should be able to exchange data with other devices to achieve remote monitoring and fault diagnosis of the system.
- Circuit Breaker
The circuit breaker is a switch that controls the opening and closing of electrical circuits and is crucial to protecting the circuit safety of the water pump control cabinet. When selecting a circuit breaker, you need to pay attention to its rated current, breaking capacity, protection characteristics, and operating mode. The rated current of the circuit breaker should match the rated current of the water pump motor to ensure that the circuit can be cut off in time in case of overload or short circuit. At the same time, the protection characteristics of the circuit breaker are also very important. It should be able to provide appropriate protection according to the size and time of the current.
- Contactor
The contactor is used to switch between the industrial frequency grid and the inverter to ensure that the output end of the inverter will not be connected to the industrial frequency grid to avoid damaging the inverter. When selecting a contactor, you need to pay attention to its rated current, operating frequency, contact material, and service life. The rated current of the contactor should be greater than the rated current of the water pump motor to ensure that it will not be damaged due to excessive current during switching. At the same time, the operating frequency of the contactor is also very important. It should be able to adapt to the operating requirements of the water pump system to avoid frequent closing and disconnecting causing inverter failure.
- Thermal relay
Thermal relays are mainly used to protect water pump motors from damage in overload conditions. When the motor current exceeds the rated value, the thermal relay will heat up and disconnect the circuit to protect the motor. When selecting a thermal relay, you need to pay attention to its rated current, action time, and reset method. The rated current of the thermal relay should match the rated current of the motor, and the action time should be moderate, so as to be able to protect the motor and avoid false operation. At the same time, the reset method of the thermal relay is also very important, it should be able to be easily reset manually or automatically.
- Lightning surge arrester
In areas prone to thunderstorms or where AC power surges occur frequently, lightning arresters are essential to protect the pump control cabinet from damage by lightning or surge voltage. When choosing a lightning surge arrester, you need to pay attention to its rated voltage, current carrying capacity, and protection mode. The rated voltage of the lightning surge arrester should be higher than the operating voltage of the system, and its current carrying capacity should be able to withstand the expected lightning strike or surge current. At the same time, the protection mode of the lightning surge arrester is also very important. It should be able to cover all possible lightning strikes or surge voltage paths in the system.
- Reactor
Reactors are used to suppress harmonic currents and reduce the total amount of harmonics generated by the inverter system, improve the power factor of the inverter, and suppress the impact of surge currents from the power grid on the inverter. When selecting a reactor, you need to pay attention to its rated current, inductance value, and installation method. The rated current of the reactor should be greater than the rated current of the inverter, and the inductance value should be moderate, which should be able to suppress harmonics while avoiding excessive voltage drop in the system. At the same time, the installation method of the reactor is also very important, it should be able to adapt to the layout and heat dissipation requirements of the water pump control cabinet.
- EMI Filter
EMI filters are used to suppress the transmission of wireless signals from wires and metal pipes to the equipment, separate the high-order harmonic components from the inverter from the impedance of the power supply system, or suppress the transmission of interference signals from the interference source equipment to the outside through the power supply line. go. When selecting an EMI filter, you need to pay attention to its insertion loss, operating frequency range, and installation method. The insertion loss of the EMI filter should be large enough to suppress harmonics and interference signals; the operating frequency range should cover the operating frequency of the system and possible interference frequencies; the installation method should be able to adapt to the layout and wiring requirements of the water pump control cabinet.
- Braking resistor
When the capacitor voltage of the inverter exceeds the set value, the braking resistor is used to consume the feedback energy. When selecting a brake resistor, you need to pay attention to its power, resistance value, and heat dissipation method. The power of the brake resistor should be large enough to withstand the feedback energy without overheating; the resistance value should be moderate, which should be able to consume energy while avoiding excessive voltage drop in the system; the heat dissipation method is also important, and it should be able to adapt to Ambient temperature and heat dissipation requirements of the pump control cabinet.
- Other components
In addition to the above main components, the water pump control cabinet also needs to be equipped with some other components, such as air switches, fuses, pressure sensors, human-machine interfaces (touch screens), electric meters, etc. The air switch is used to protect the power switches of the main circuit, control circuit and signal circuit; the fuse is used to provide protection when the circuit is overloaded or short-circuited; the pressure sensor is used to collect the water pressure signal to achieve closed-loop control of the system; the human-machine interface It is used to set and display the data in PLC, which is convenient for operation and maintenance; the watt-hour meter is used to measure the power consumption of the system and provide a basis for energy management.
When selecting these components, you need to pay attention to their performance parameters, quality reliability, and brand reputation. At the same time, the compatibility and coordination between components also need to be considered to ensure that they can work together to achieve the best performance of the water pump control cabinet.
In summary, the selection of components for water pump control cabinet is a complex and meticulous process that requires comprehensive consideration of multiple factors. By properly selecting components, the performance of the water pump control cabinet can be ensured to be stable, safe and reliable, meeting the operating requirements of the system. At the same time, it can also reduce the system’s maintenance costs and increase its service life, bringing users a better user experience and economic benefits.
